BSA Bottom Bracket

BSA Bottom Bracket

Wheels Manufacturing BSA Bottom Brackets for frames that accept English (BSA) threaded bottom brackets


  • Allows the use of SRAM DUB compatible cranks with 29mm spindles to be used in a BSA threaded frame
  • Durable and lightweight machined aluminum cups for outboard set ups
  • Features Enduro 6806/29 ABEC-3 sealed bearings for smooth operation and long life
  • Bottom bracket is fully serviceable
  • Fits frames with 68mm, 73mm and 100mm (Without sleeve) bottom bracket shell widths
  • Includes: (2) BB cups with bearings, (2) Silicon dust seals, (2) 0.5mm crank spindle spacers, (2) 1.0mm crank spindle spacers, (1) 1 - 2.5mm crank spindle spacer
  • Over Bearing Width: 91.5mm in a 68mm wide shell (Over Bearing Width Dimensions include supplied silicone dust shields)
  • 16-notch x 48.5mm tool recommended (Not included)
Select Options
From $39.20

Original: $112.00

-65%
BSA Bottom Bracket—

$112.00

$39.20

More Images

BSA Bottom Bracket - Image 2
BSA Bottom Bracket - Image 3

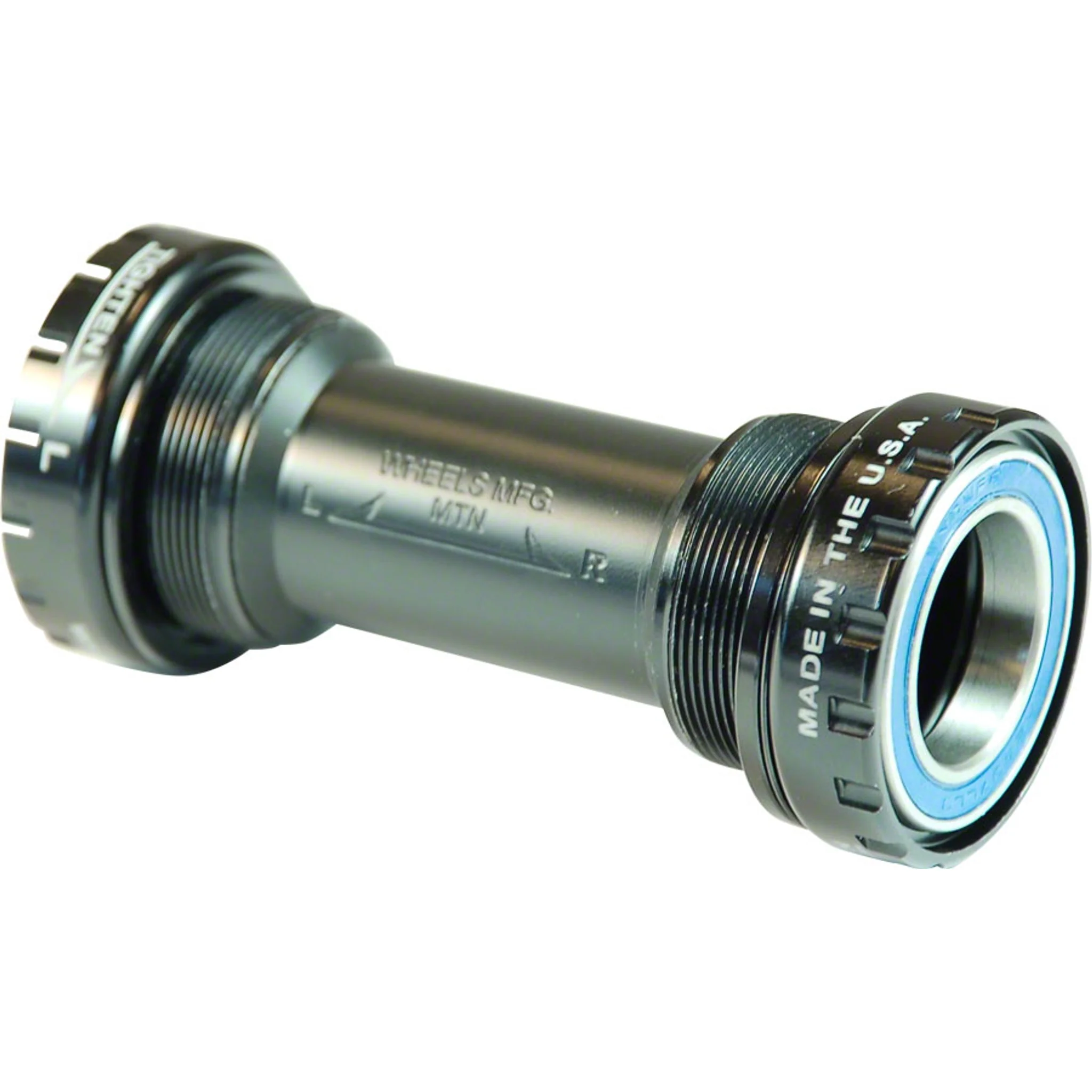

BSA Bottom Bracket - Image 4

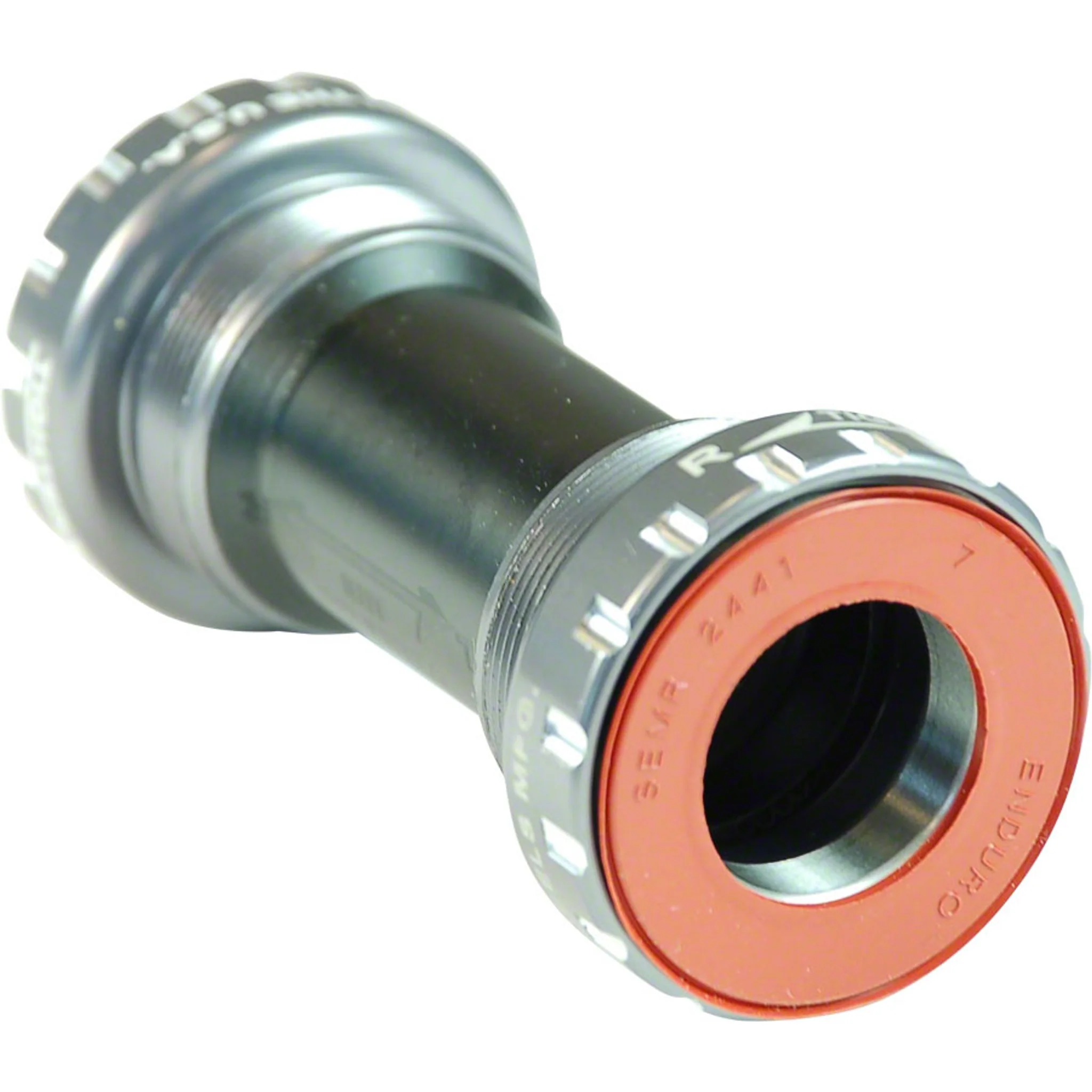

BSA Bottom Bracket - Image 5
BSA Bottom Bracket - Image 6

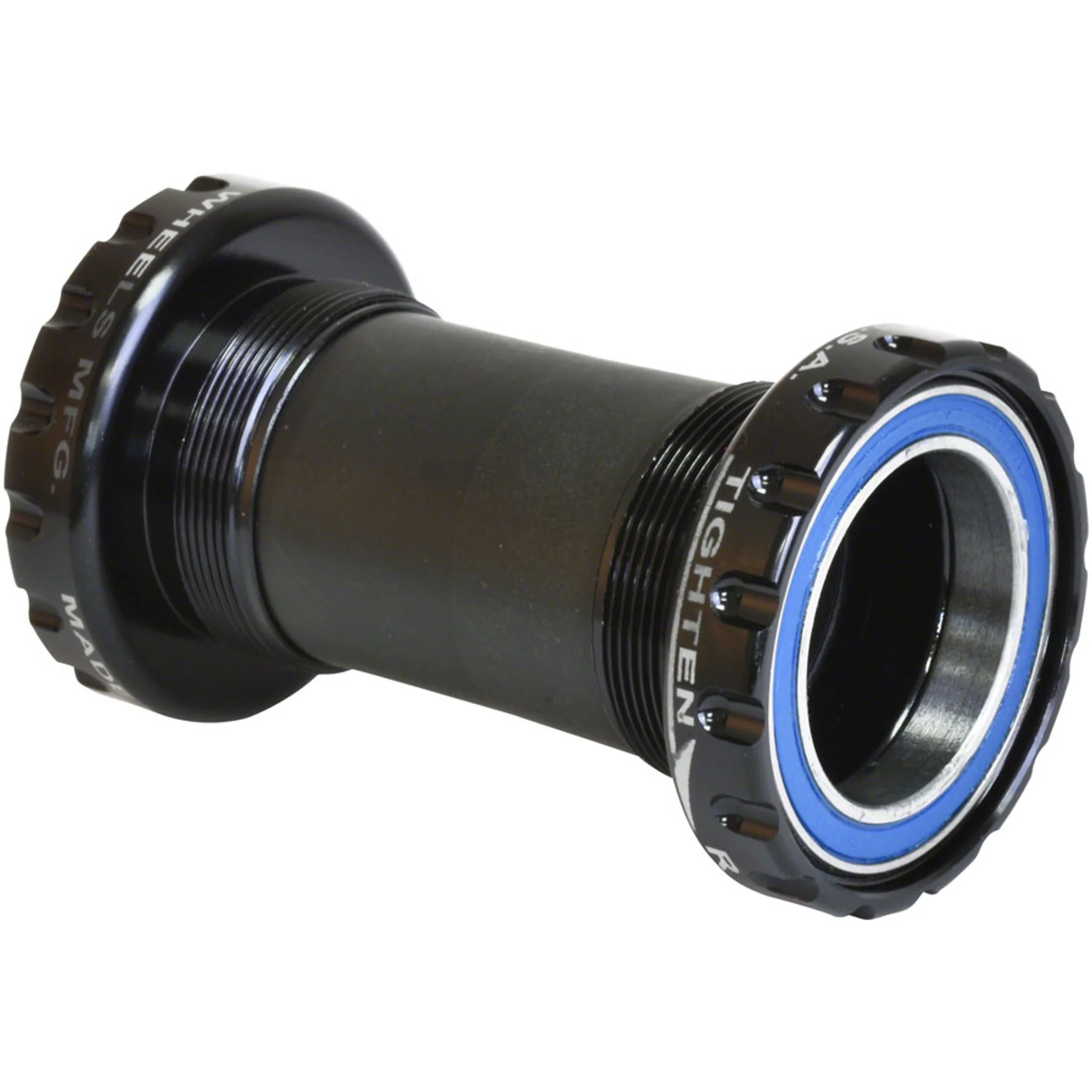

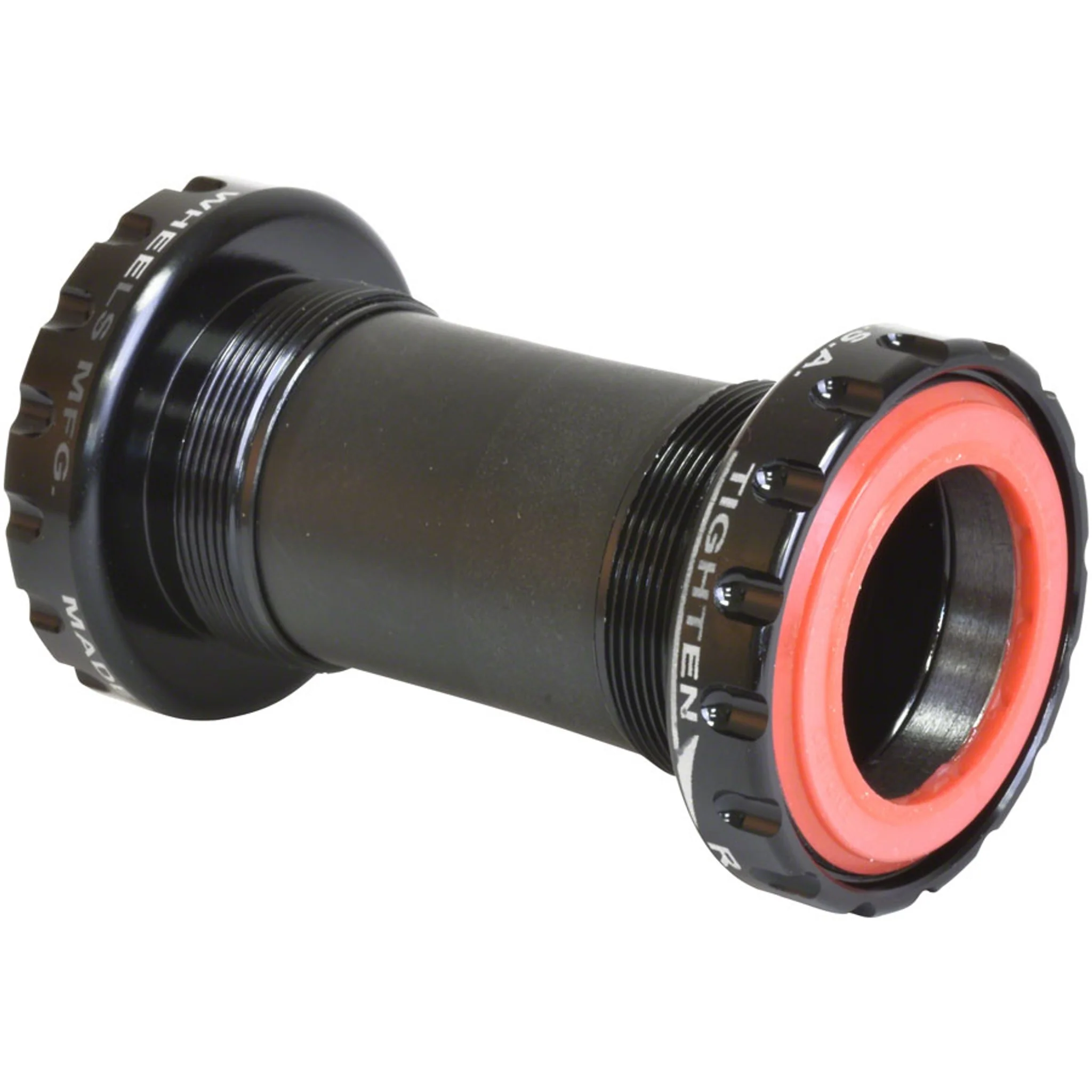

BSA Bottom Bracket - Image 7

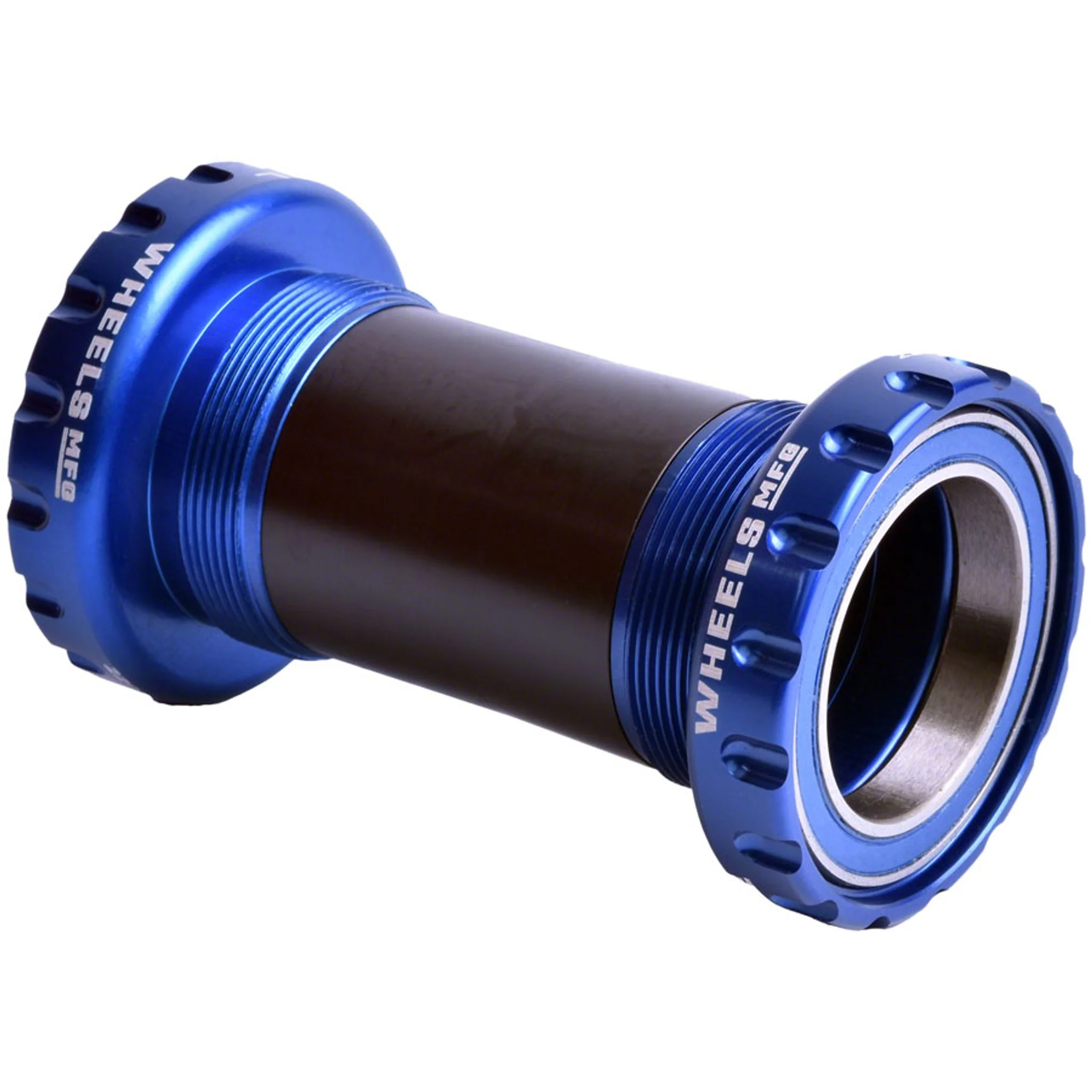

BSA Bottom Bracket - Image 8

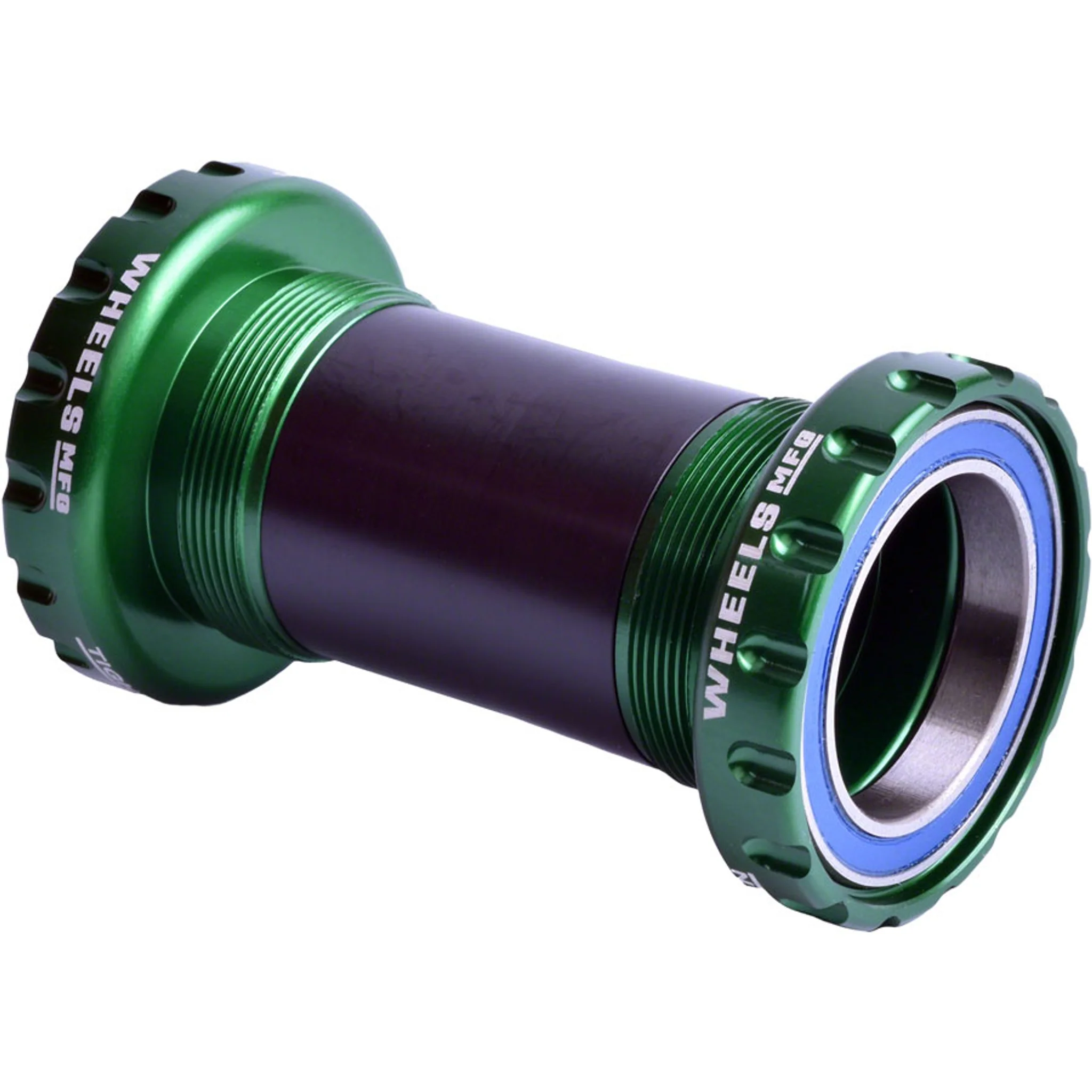

BSA Bottom Bracket - Image 9

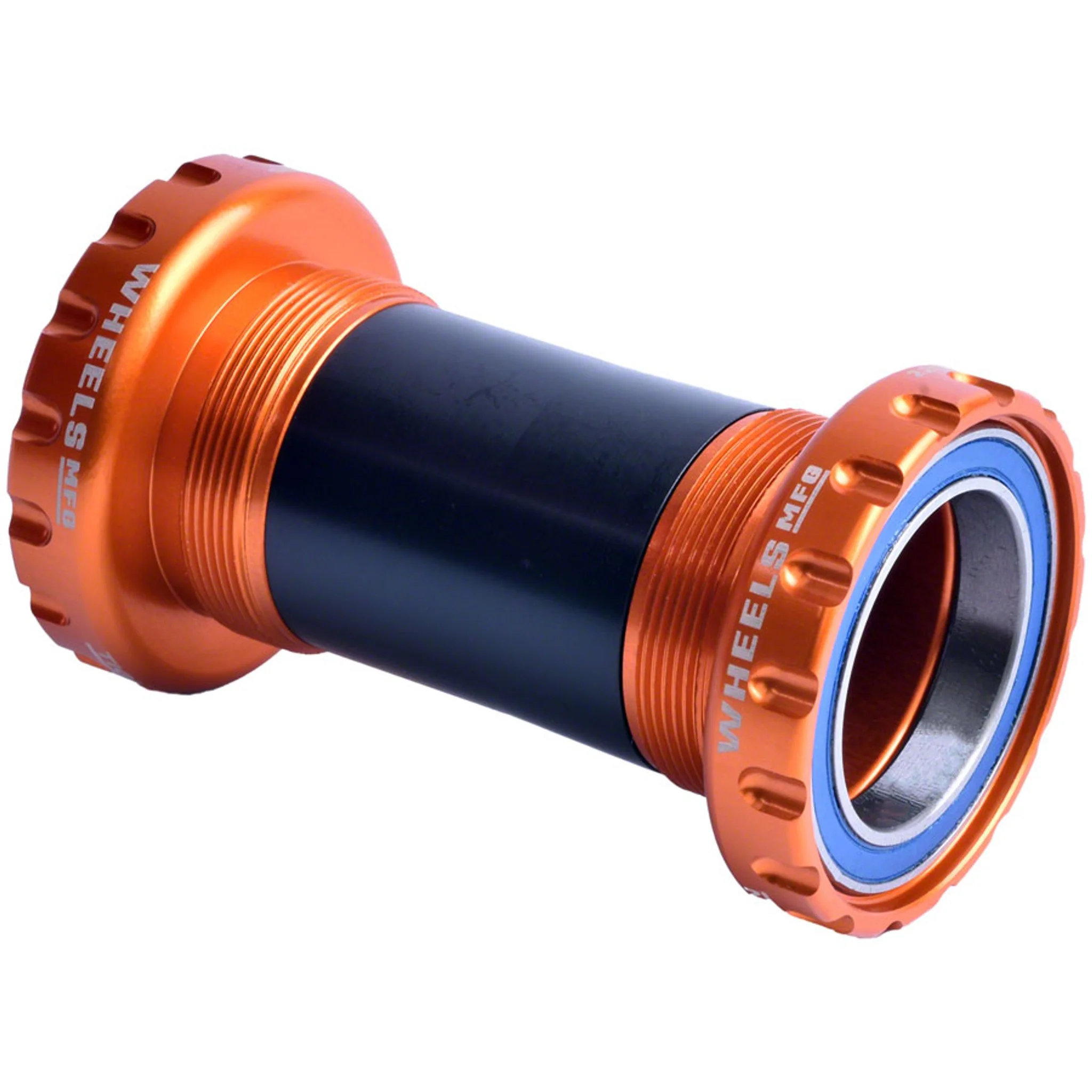

BSA Bottom Bracket - Image 10

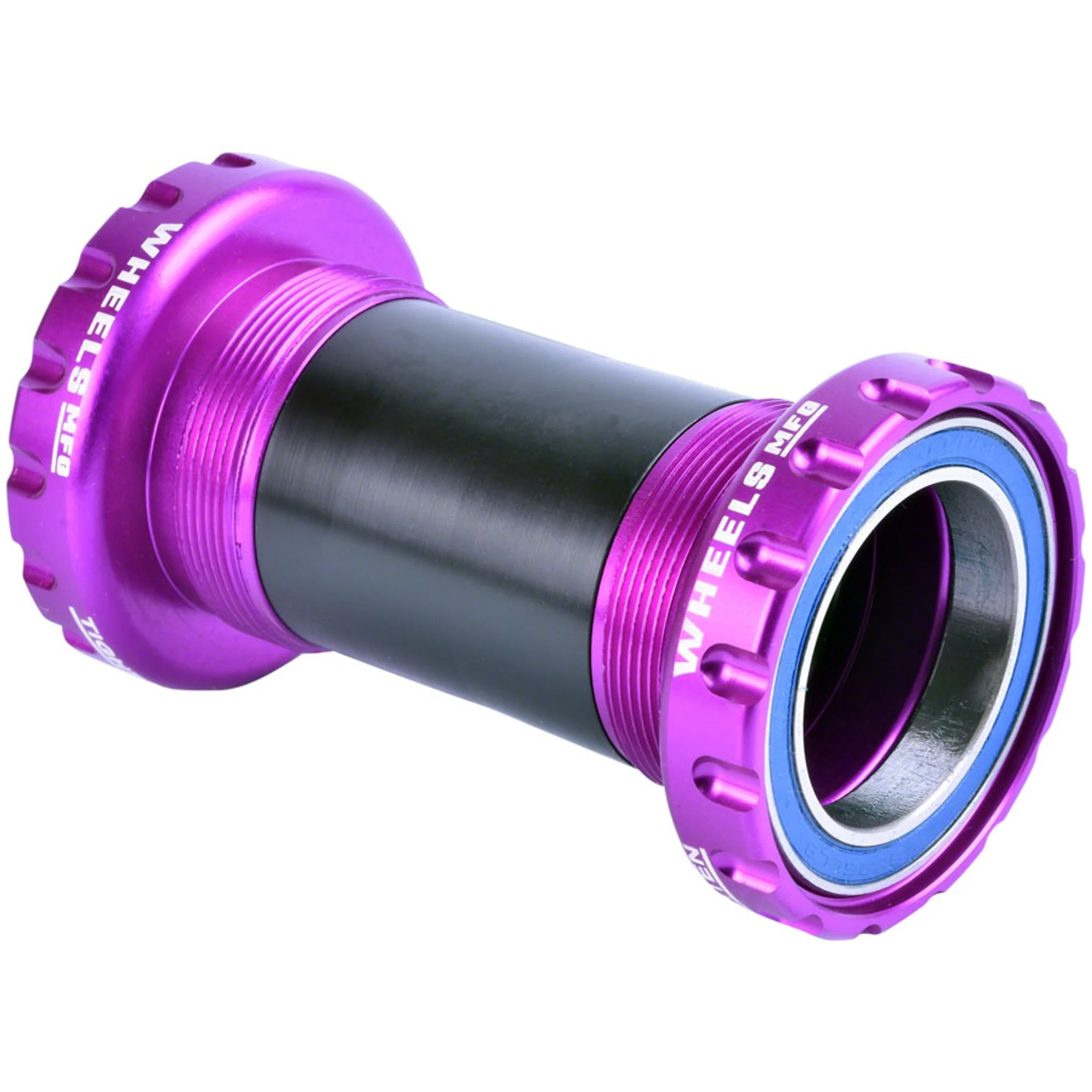

BSA Bottom Bracket - Image 11
BSA Bottom Bracket - Image 12

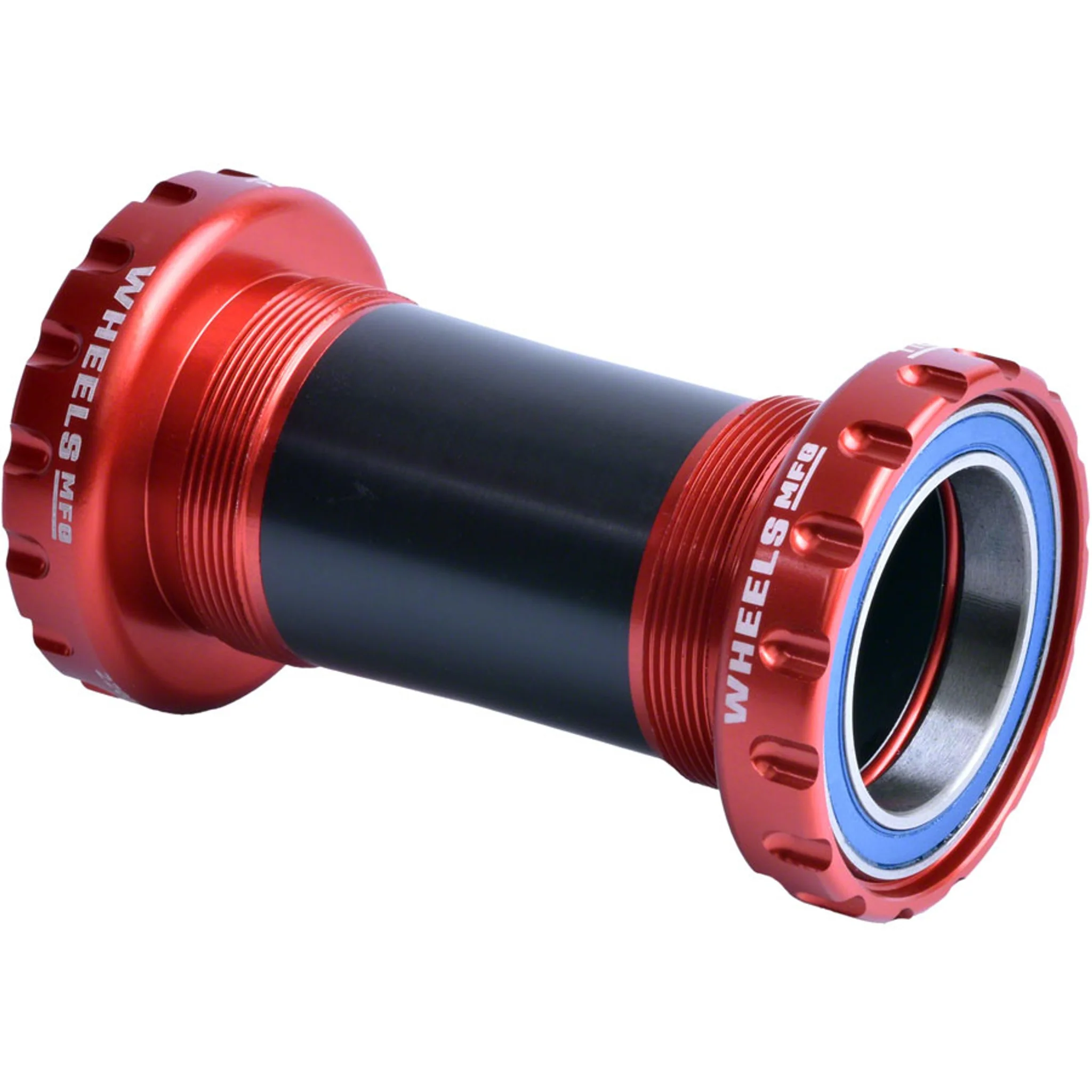

BSA Bottom Bracket - Image 13

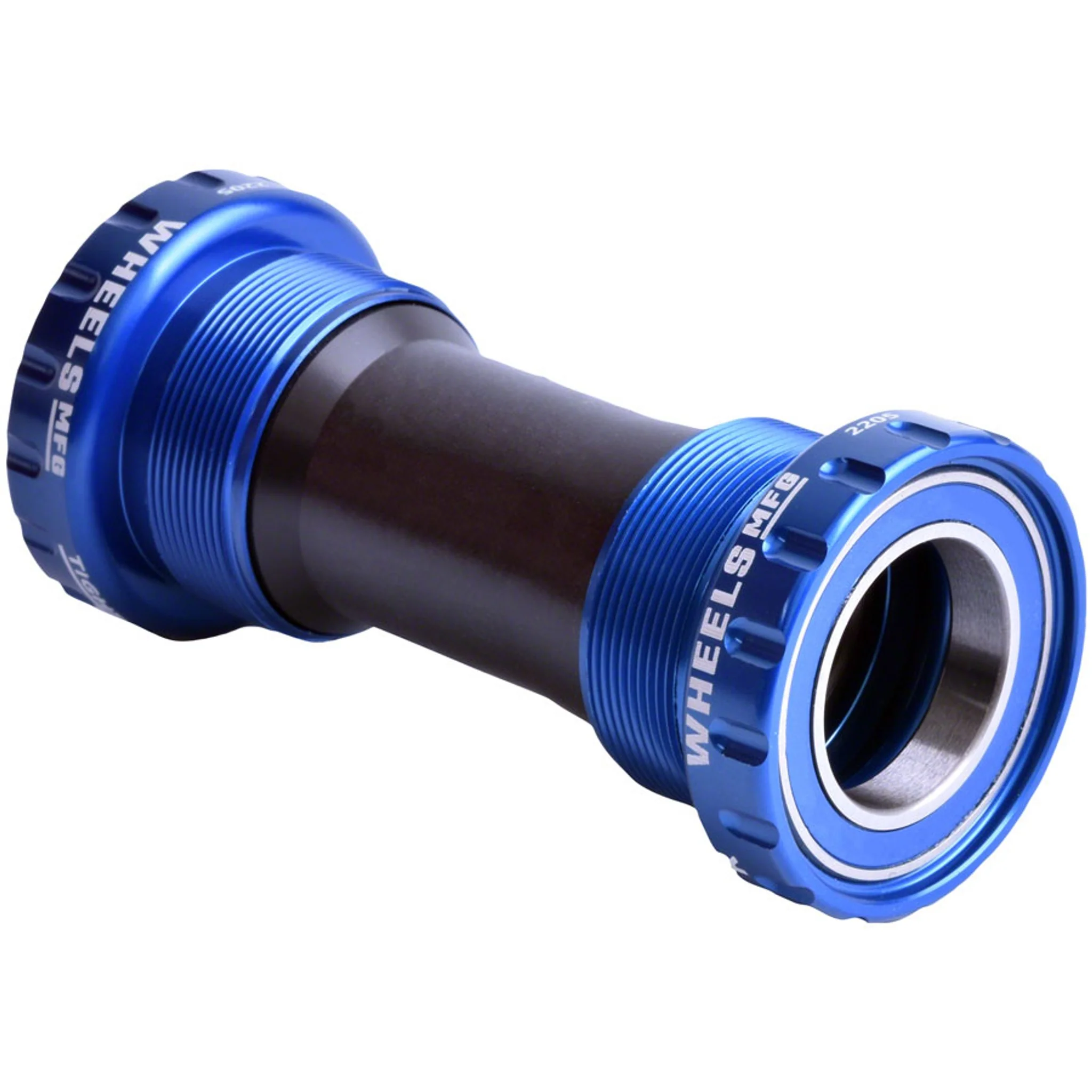

BSA Bottom Bracket - Image 14

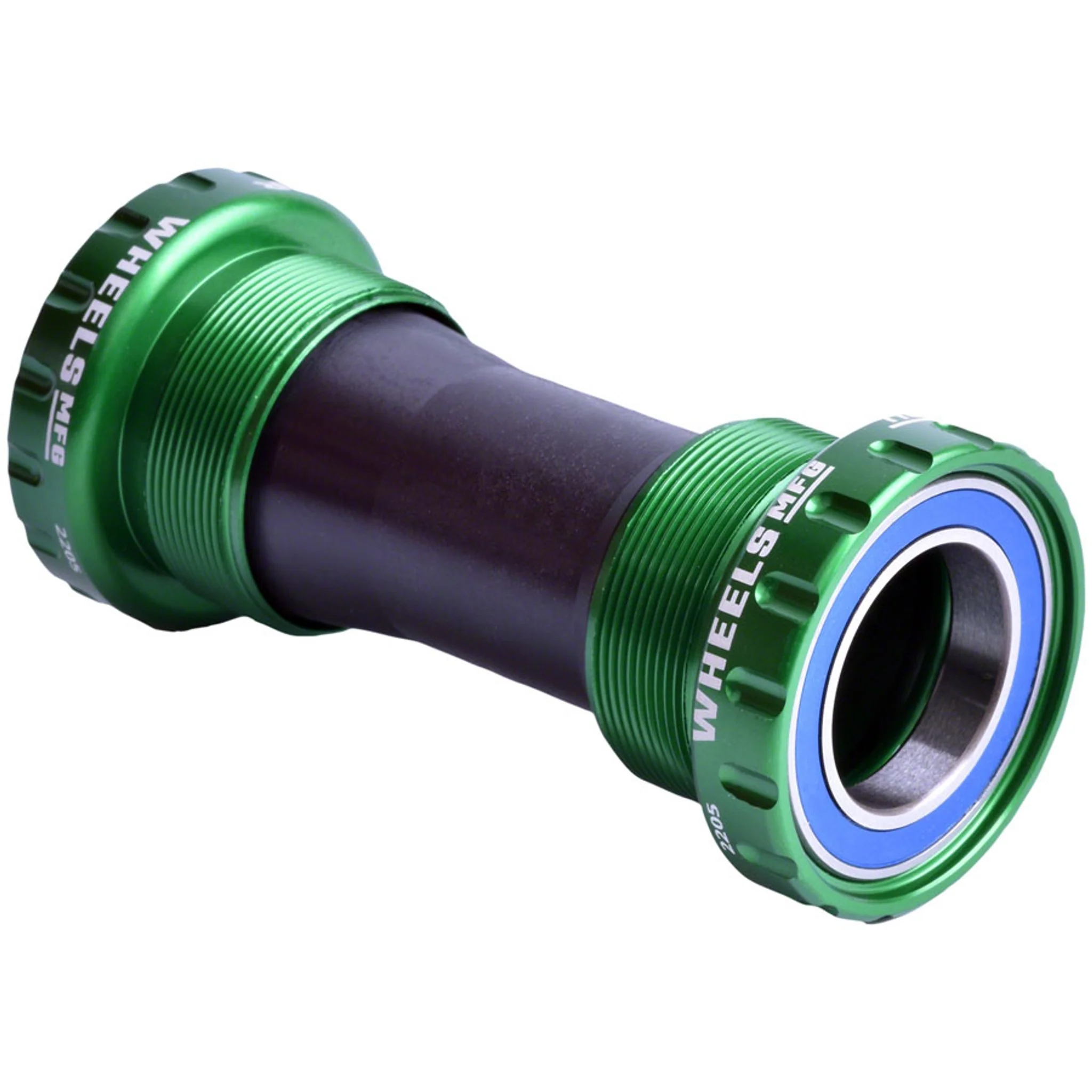

BSA Bottom Bracket - Image 15

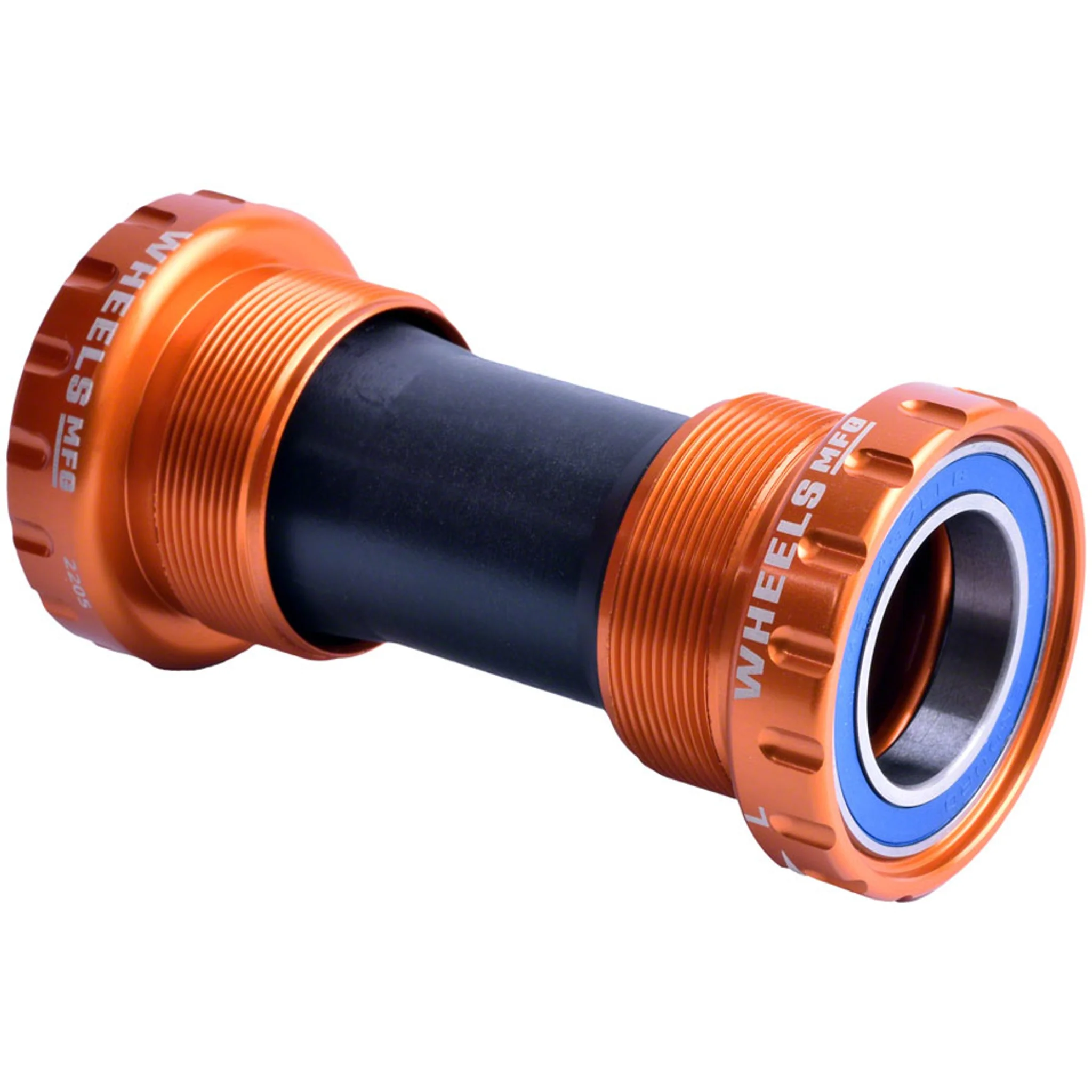

BSA Bottom Bracket - Image 16

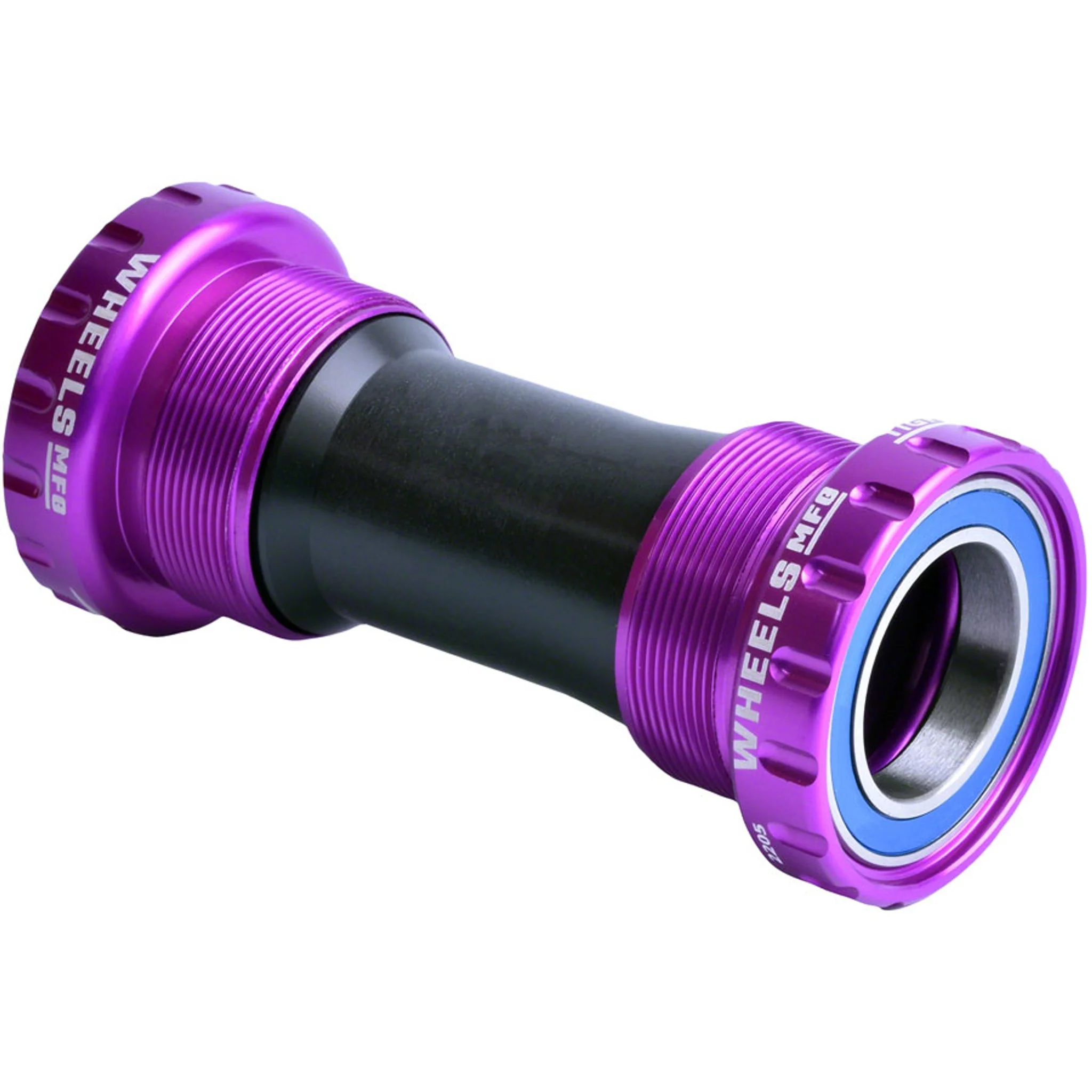

BSA Bottom Bracket - Image 17

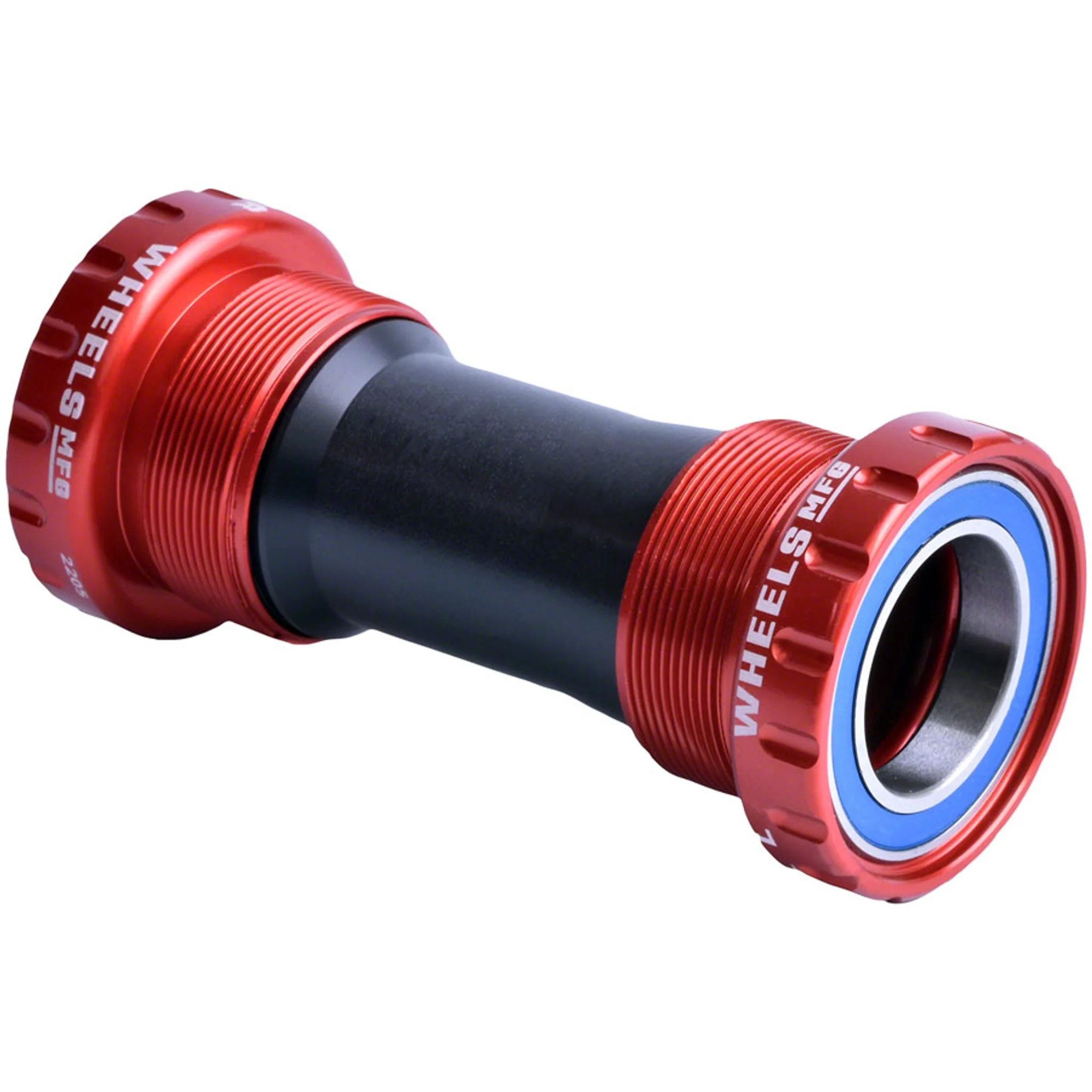

BSA Bottom Bracket - Image 18

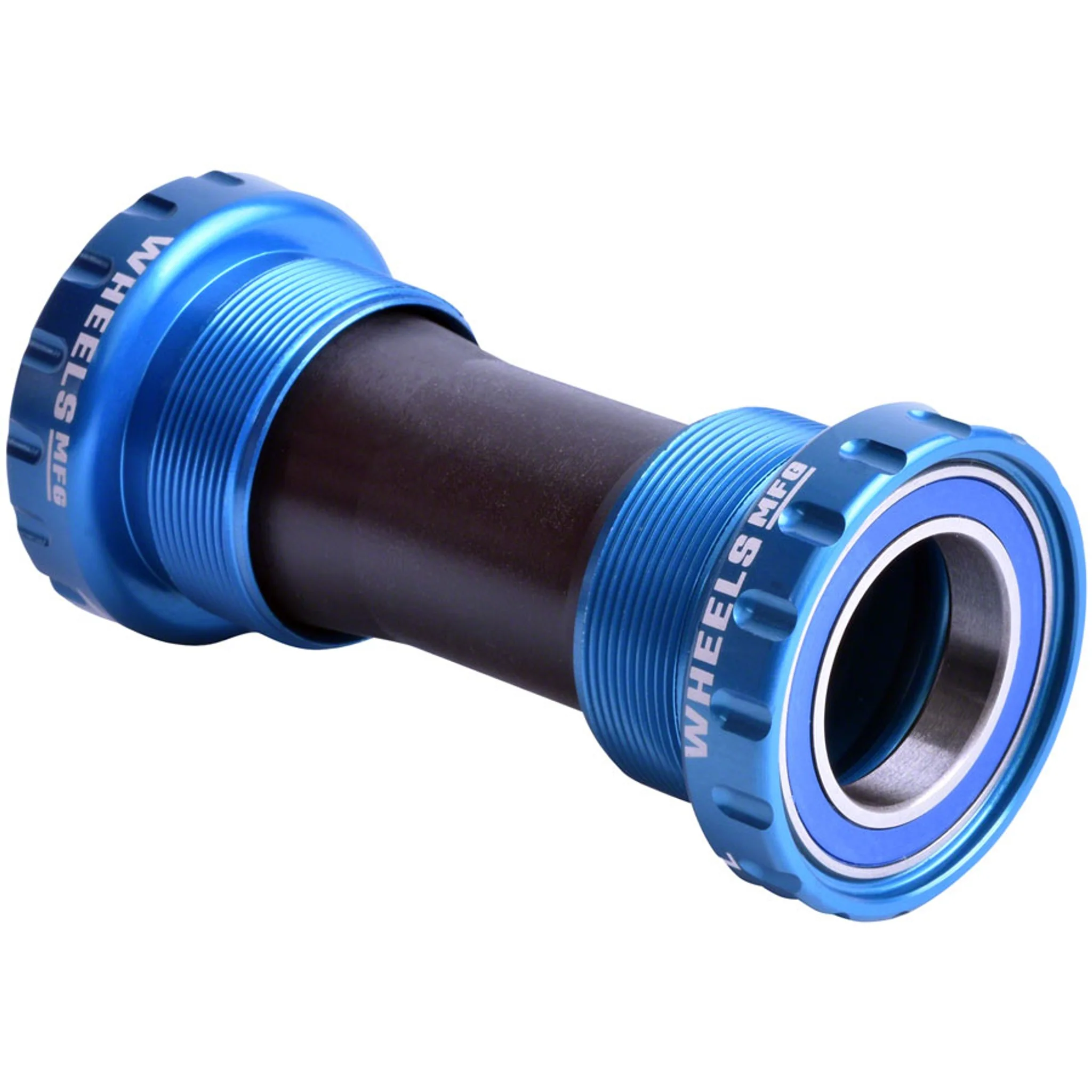

BSA Bottom Bracket - Image 19

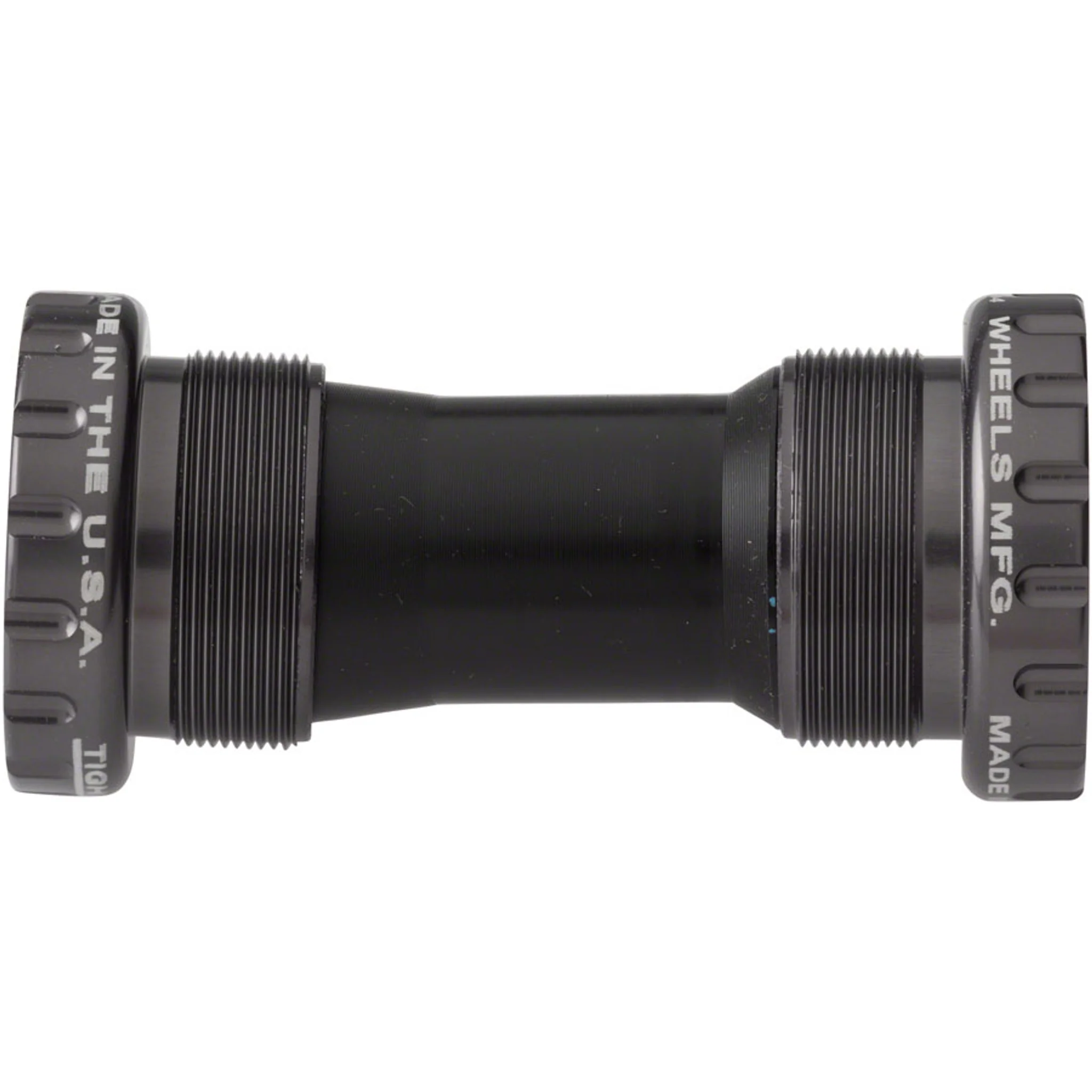

BSA Bottom Bracket - Image 20

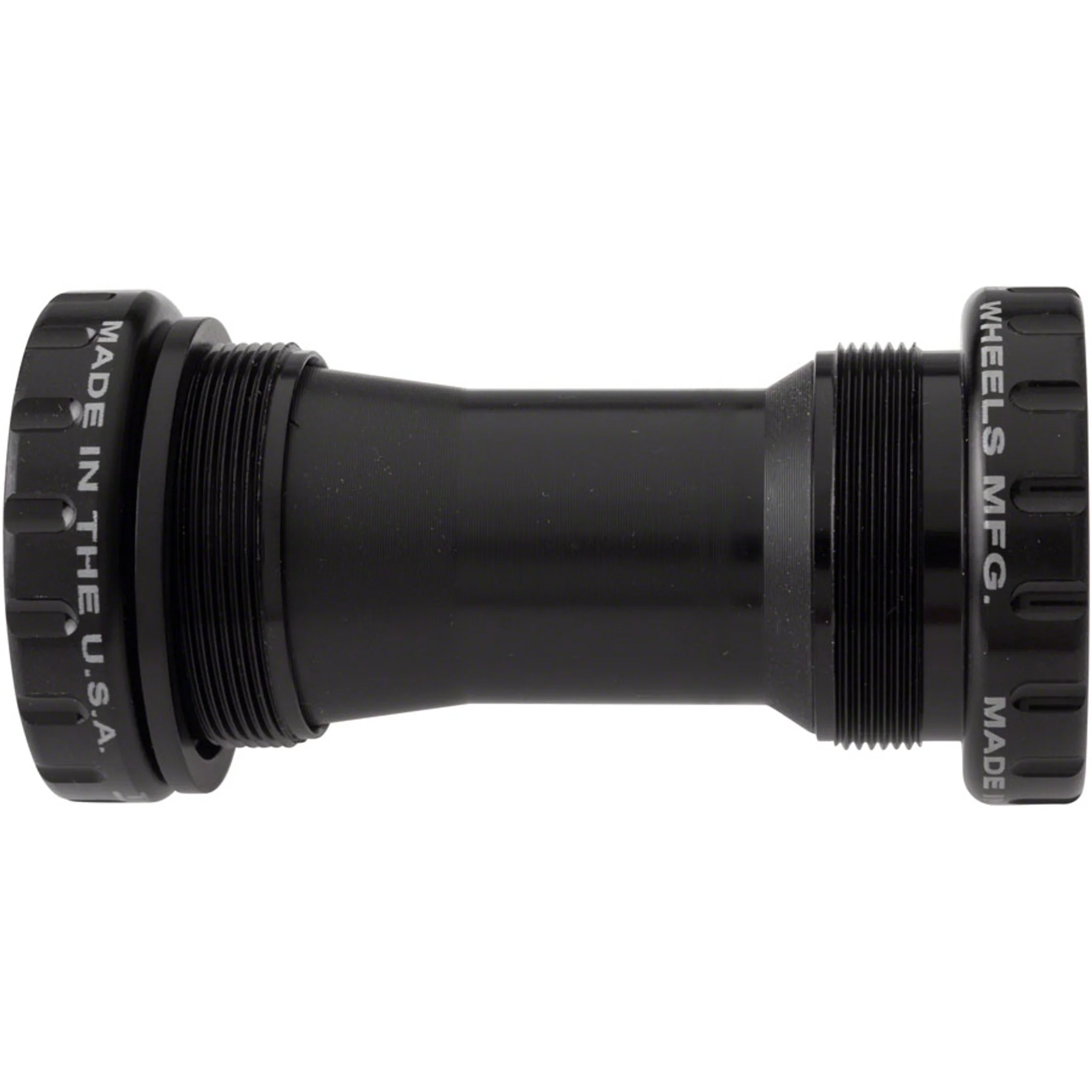

BSA Bottom Bracket - Image 21
